Product Description

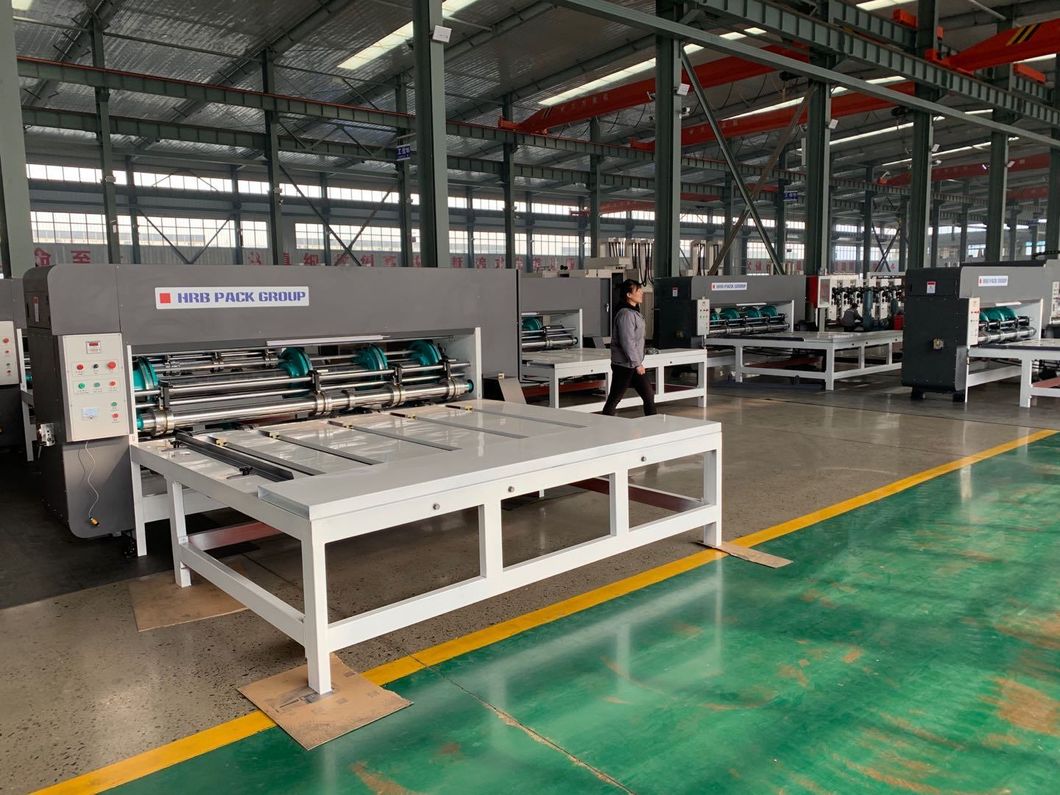

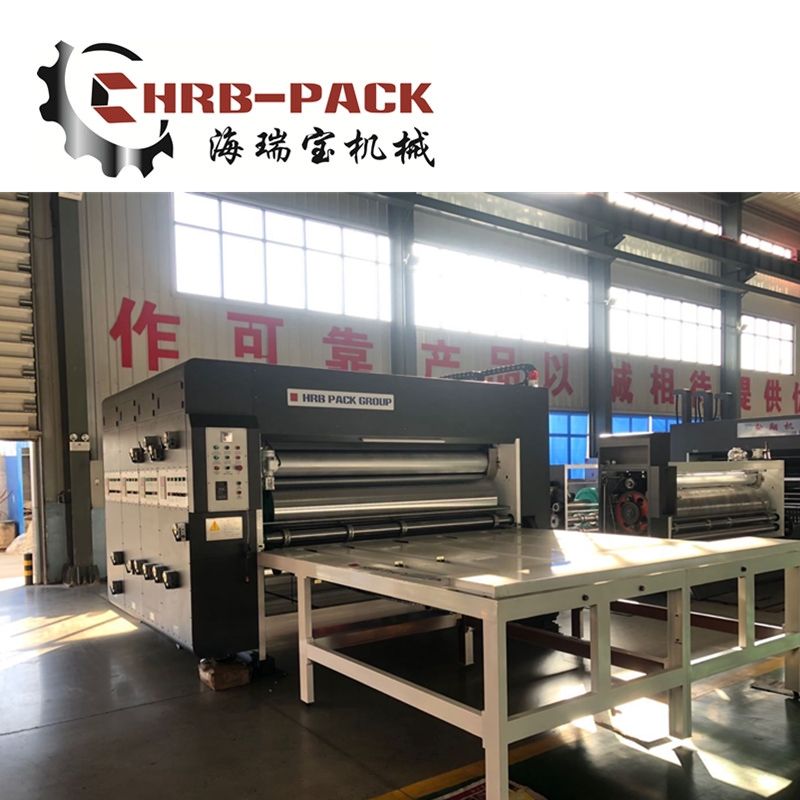

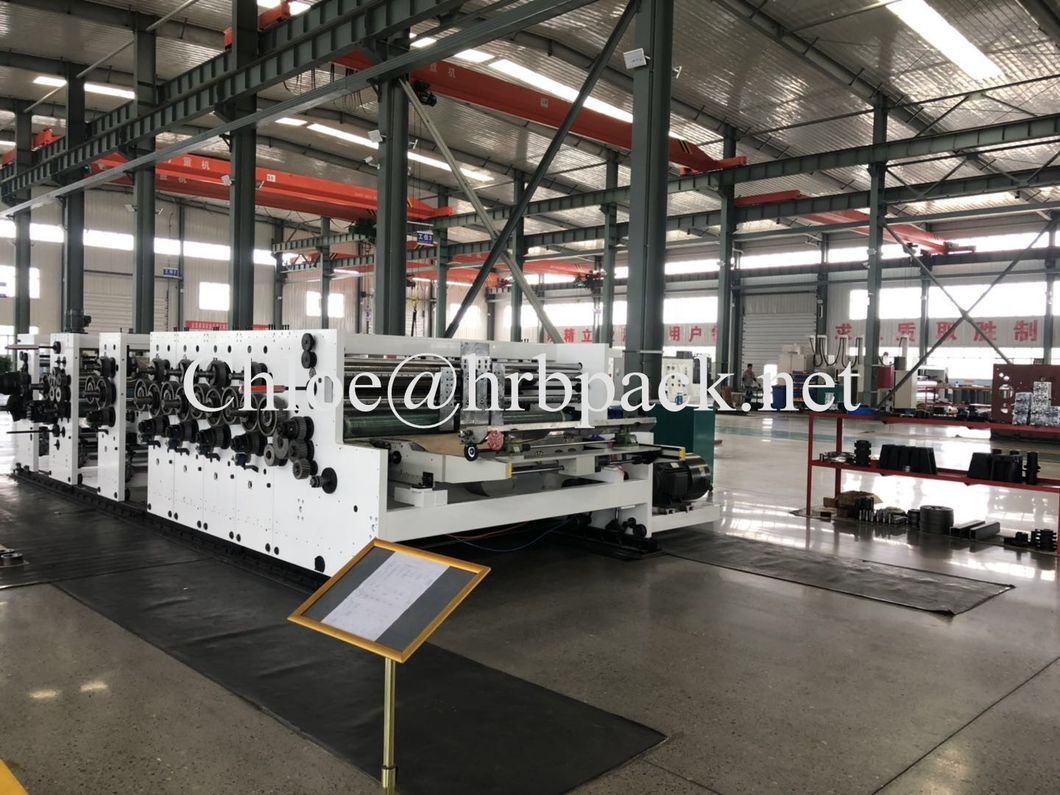

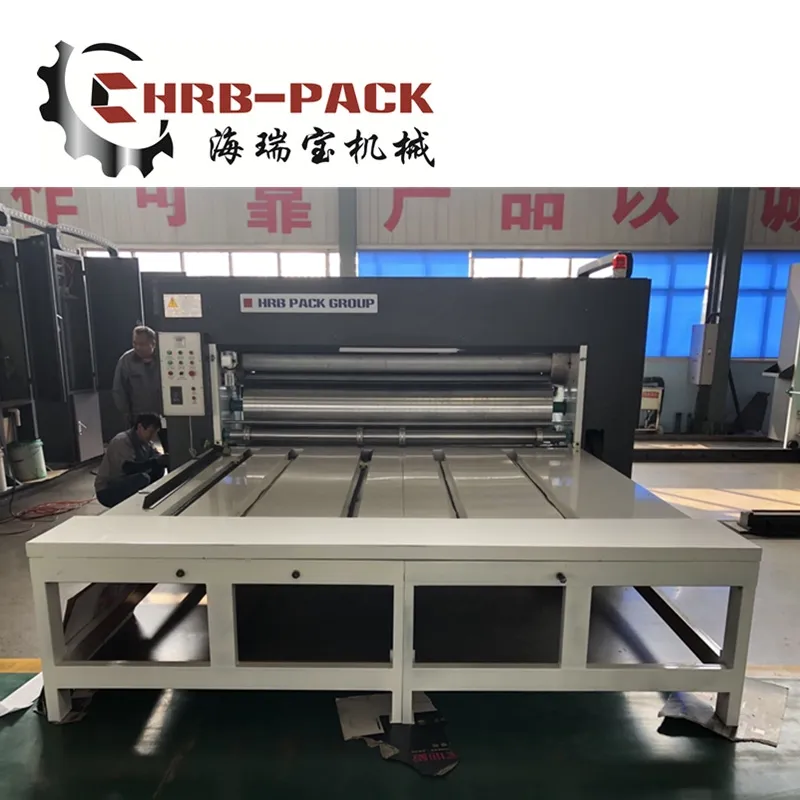

1224 CHAIN FEEDING PRINTER ROTARY SLOTTER DIE CUTTER MACHINE

Chain Feeding Flexo Printer Slotter Die Cutting Carton Box Machine; Printing Slotting Die Cutting Paperboard Machine

Chain Feeding Flexo Printer Slotter Die Cutting Carton Box Machine; Printing Slotting Die Cutting Paperboard Machine

model	920	1224	1428	1632	2542
max feeding	900*2000	1200*2400	1400*2800	1600*3200	2500*4200
min feeding	350*600	350*650	350*650	450*800	460*850
max printing	900*1800	1200*2200	1400*2600	1600*3000	2500*4000
min.slotting distance	23065230*65	26080260*80	27580275*80	28085280*85	28090280*90
die cutting size	900*1800	1200*2200	1400*2600	1600*3000	2500*4000

Techincal configuration:

1. speed:40-60sheets/min
2. wallboard:50mm
3. gear: HRB brand

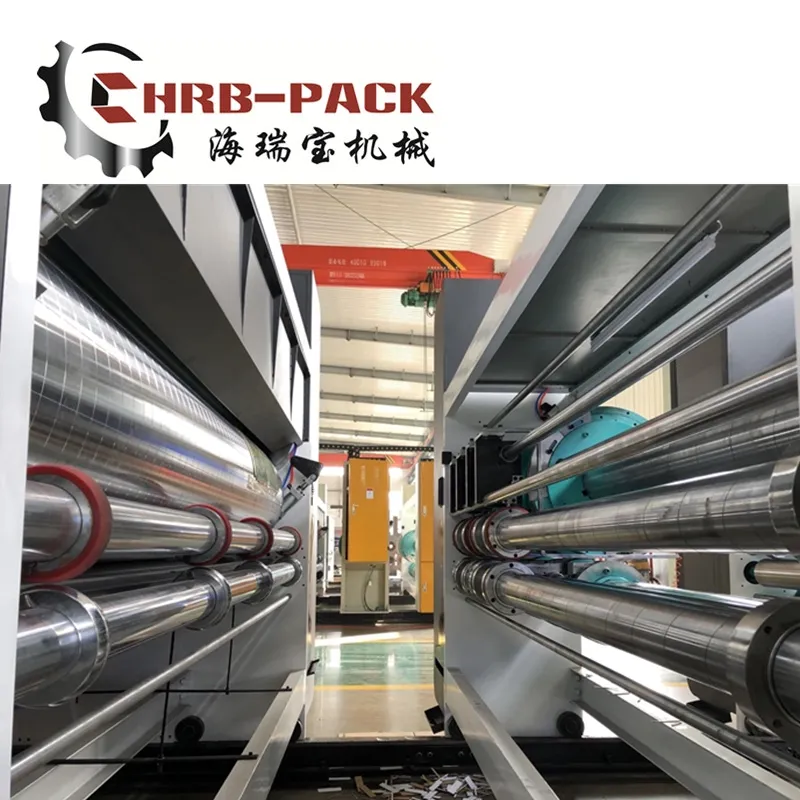

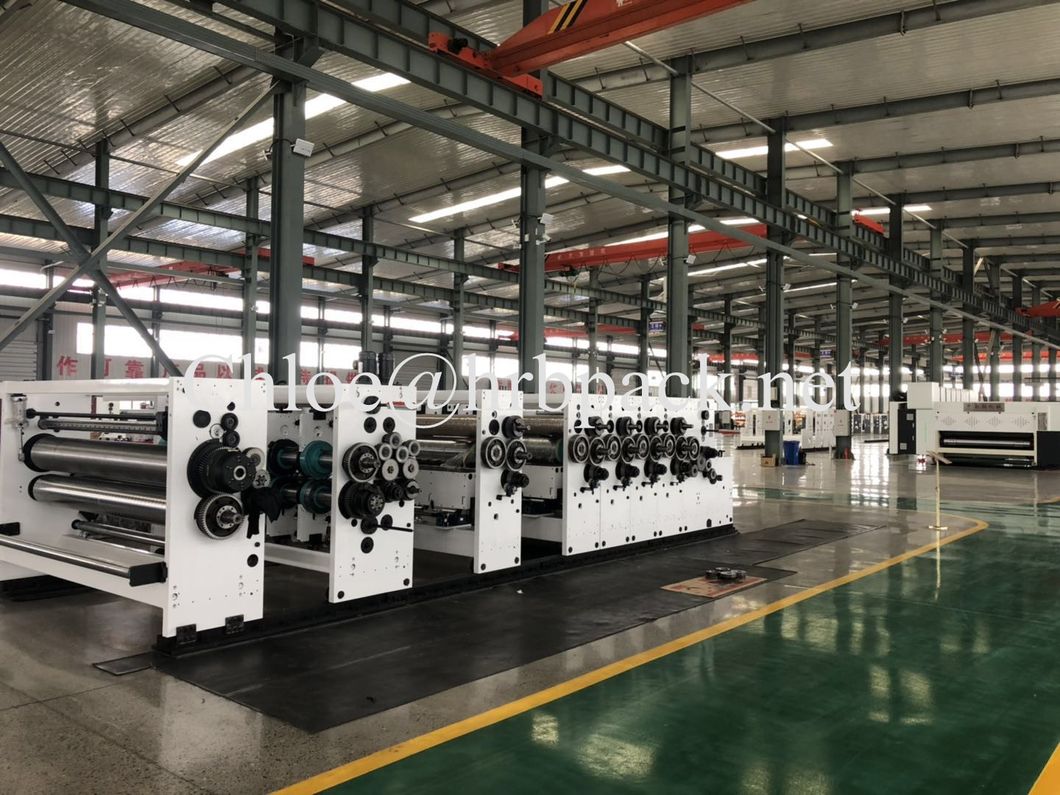

Printer Unit

Gear enclosed spray lubrication system, keyless drive design, so that accurate long-term chromatic unchanged. High-speed Ink Printing Slotting Machine Manufacture
Frequency control system to control becomes easy and flexible. Each group of printing unit is equipped with jogging button for easy control and loaded rubber plate.
Each printing unit can be electrical separation. Printing Slotting Machine
High-precision anilox roller, diameter 195mm. The textured density of anilox roller is 180-300 lines / inch, to ensure the printing effect is clear and beautiful.
Ink supply system is pneumatic diaphragm pumps, high efficiency, Flexo Printing Slotting Machine saving ink. Automatic cycle supply. Cleaning with clean water can be.
Automatic uniform system to keep the anilox roller quit. When the machine stop,the anilox roller and rubber roller could running independently for transmission ink and prevent the ink dry out.
The rubber roller is use high quality hard wearing rubber,and with the middle of a relatively high high-precision grinding. Semi Automatic Carton Flexo Printing Slotting Machine
Phase institutions is 360-degree Electric adjustment, ergonomic design.

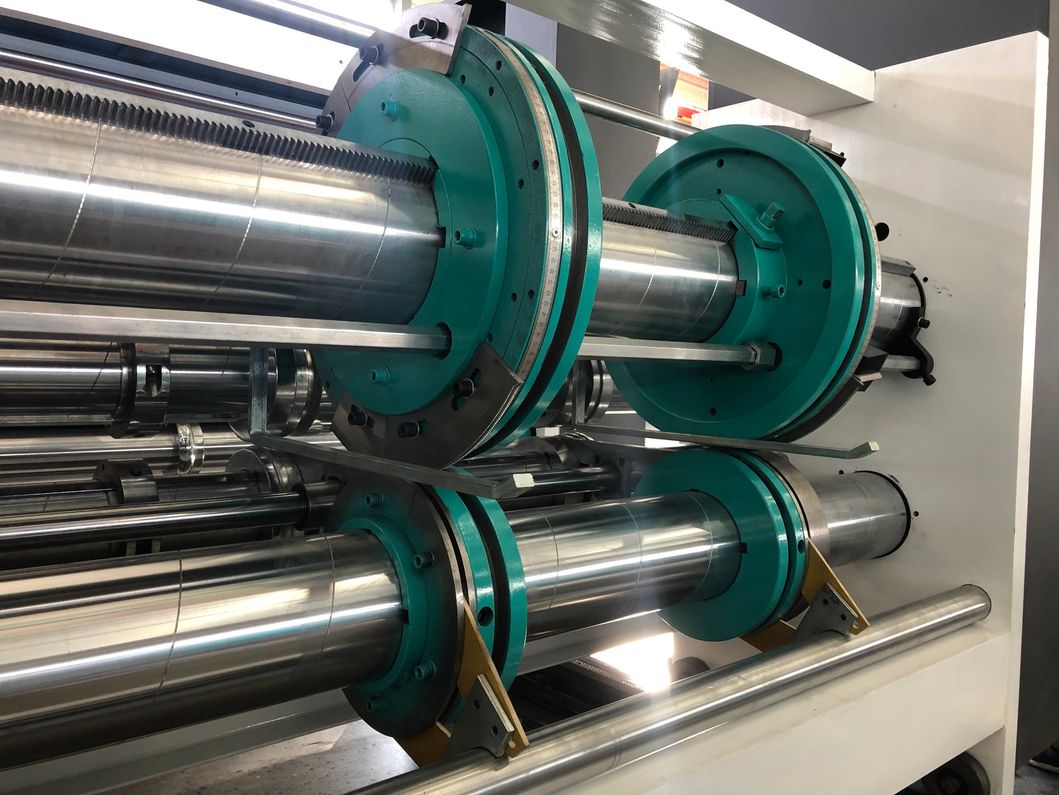

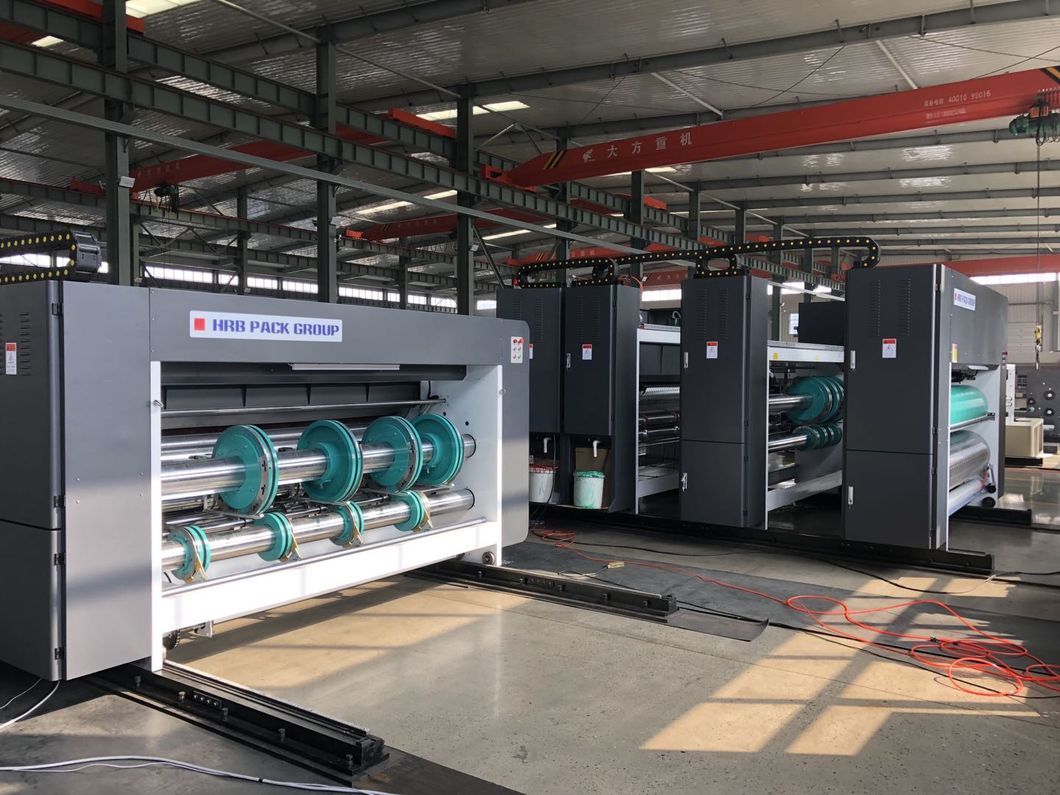

Slotting Unit

Chain Feeding Flexo Printer Slotter Die Cutting Carton Box Machine; Printing Slotting Die Cutting Paperboard Machine

Gear enclosed spray lubrication system, keyless drive design, so that accurate long-term chromatic unchanged. High Speed Flexo Printing Slotting(stacking Unit)
Phase institutions is 360-degree Electric adjustment, ergonomic design.
Four-blade sync adjustment for carton height.
Serrated slotted cutter. Thickness: 7mm.
Slotter and creaser combined movement

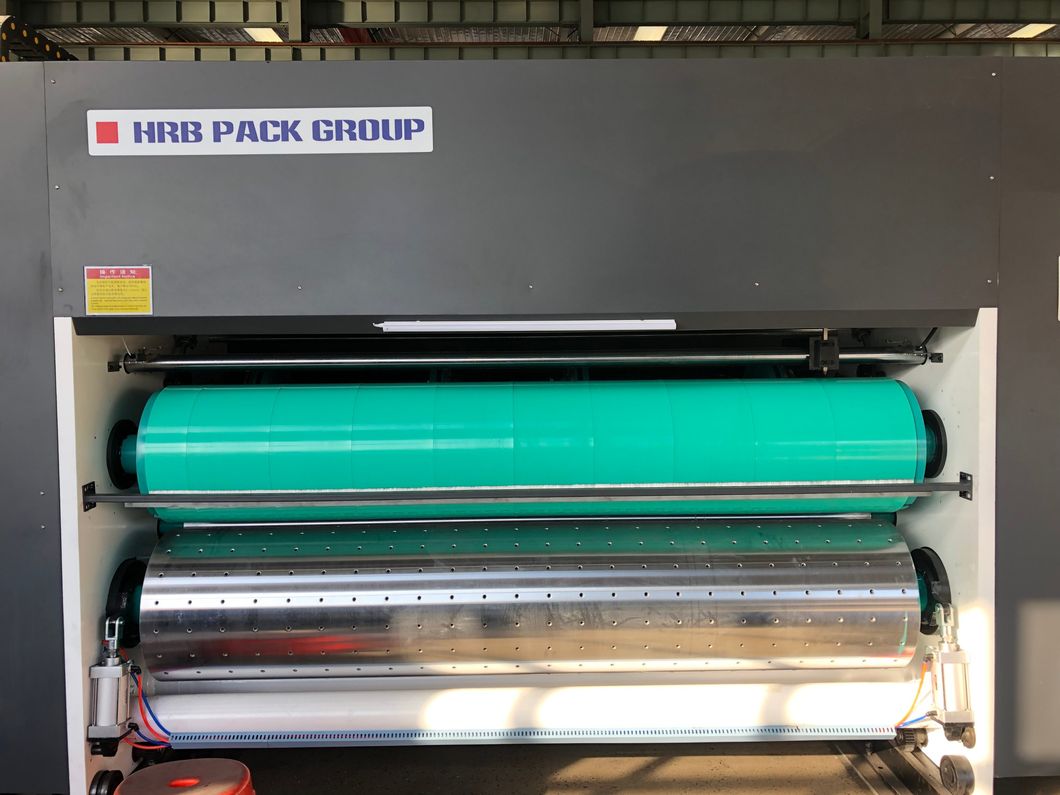

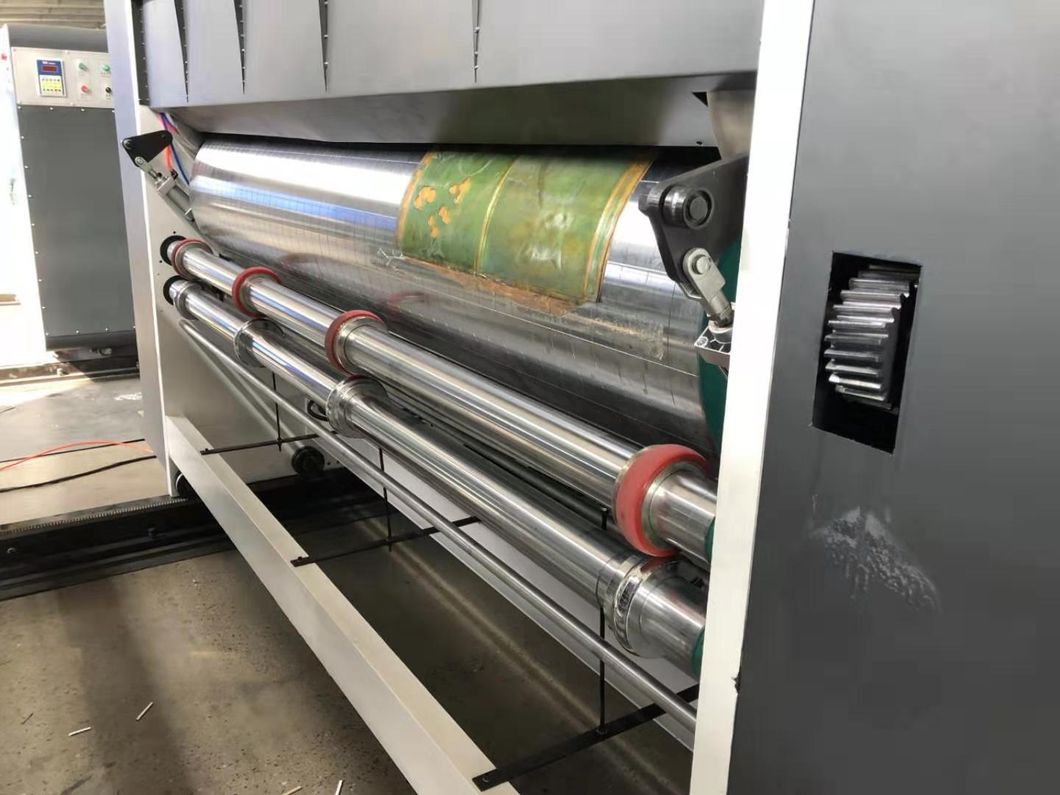

Die-cutting Unit

Chain Feeding Flexo Printer Slotter Die Cutting Carton Box Machine; Printing Slotting Die Cutting Paperboard Machine

Rubber roller mechanical spiral commutation 40mm move about horizontal structure
Die-cutter phase, computer and electric digital control
Horizontal phase, computer and electric digital control, range ±5mm
Rubber roller and die roller gap use computer and electric digital control,
Adjust the transfer roller use computer and electric digital control,
The rubber roller compensated by motor-driven,control the speed of thr rubber roller, range ±3mm
