Lead Edge 4color Printer Slotter Die Cutter Box Machine/High Speed Flexo Printing Slotting Die Cutting
High-speed Flexo 4 Printer Slotter Die cutter corrugated box HRB-1224 LEAD EDGE FEEDER PRINTER SLOTTER DIE CUTTER Wallboard thickness 60mmMax Machine Speed (pcs/min) 180Max. Feeding Size (mm) 1200*2200Min. Feeding Size (mm) 350x650Skip-feeding Size (mm) 1400*2200Standard Plate Thickness (mm) 3......
Send Inquiry
Product Description

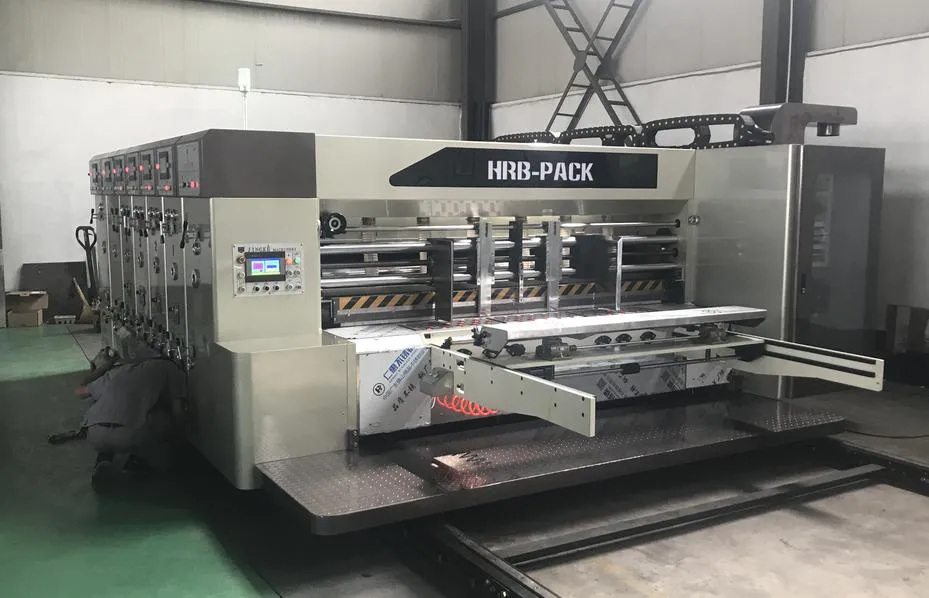

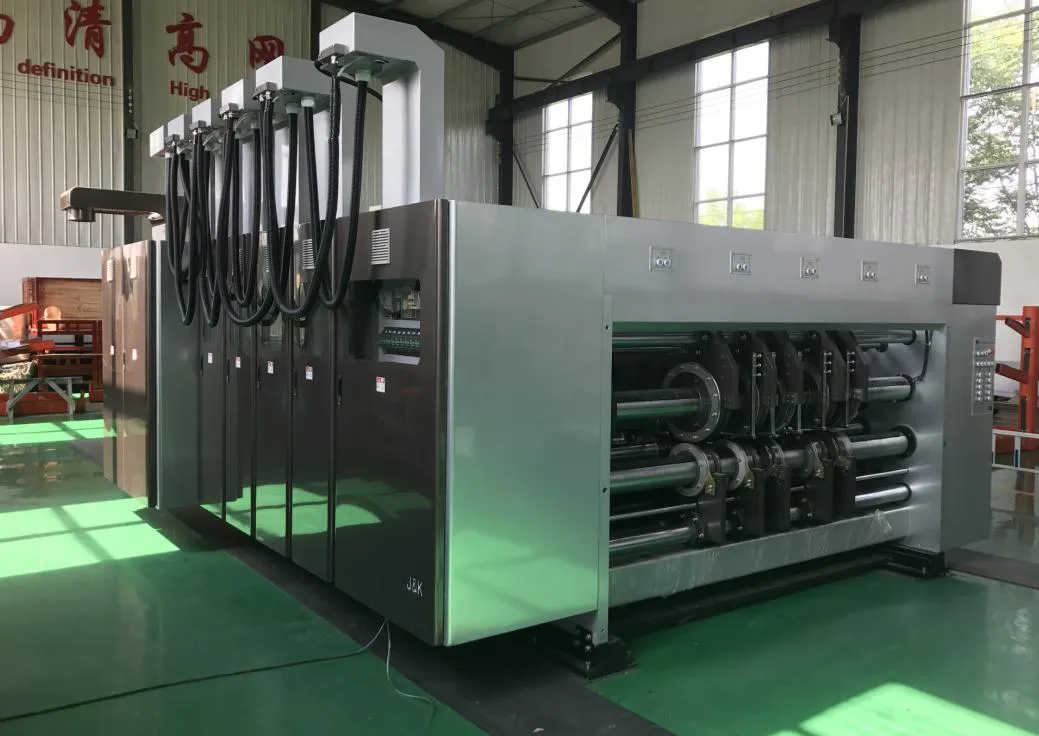

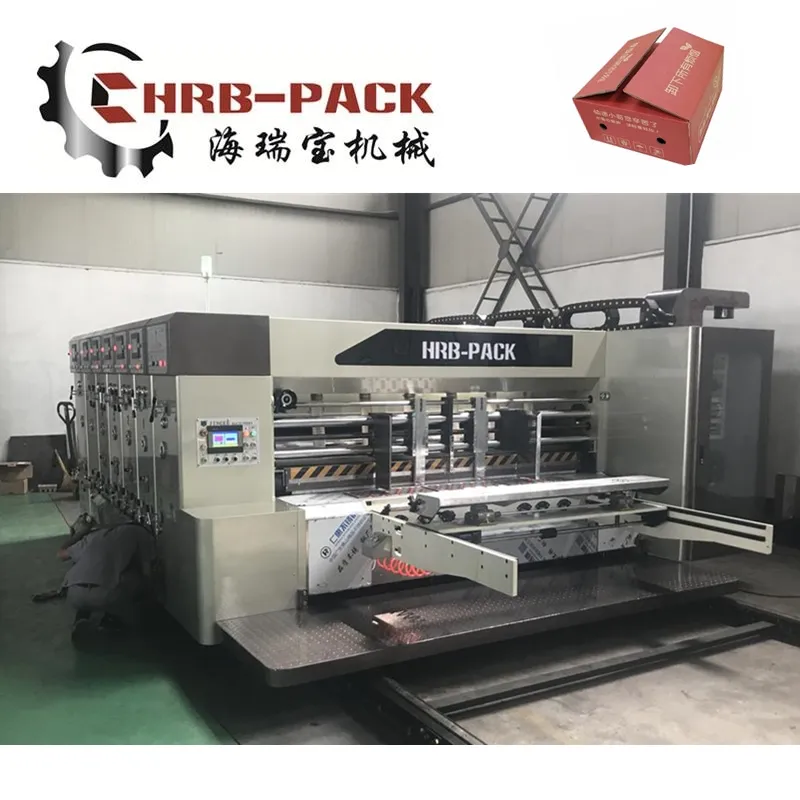

High-speed Flexo 4 Printer Slotter Die cutter corrugated box
HRB-1224 LEAD EDGE FEEDER PRINTER SLOTTER DIE CUTTER | |
| Wallboard thickness | 60mm |
| Max Machine Speed (pcs/min) | 180 |
| Max. Feeding Size (mm) | 1200*2200 |
| Min. Feeding Size (mm) | 350x650 |
| Skip-feeding Size (mm) | 1400*2200 |
| Standard Plate Thickness (mm) | 3.9 |
| Max printing size(mm) | 1200*2000 |
| Min. slotter distance POSITIVE | 160X160X160X160 |
| Min. slotter distance NEGATIVE | 290X85X290X85 |
| Max slotter depth (mm) | 300 |
| Print precision (mm) | ±0.3 |
| Slot precision (mm) | ±1.0 |
| Die cut precision (mm) | ±1.0 |
| Suitable Cardboard Thickness (mm) | 2 - 11 |

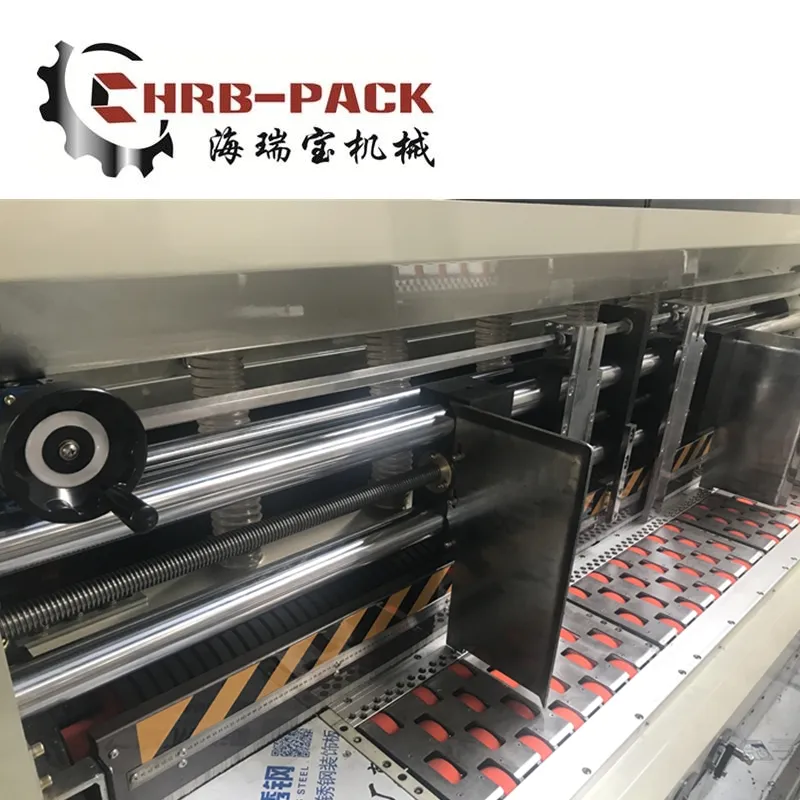

Lead edge feeding machine:
- According to cardboard thickness, adopt worm gear box gap tuning, with locking device. Adjustment range 0-12mm
- Lead-edge suction feeding system, easy operation, high accuracy,(adopts lead feeder system)
- 7.5KW high pressure centrifugal fans, according to the cardboard
- Install 7" touch screen
- Adopt brush cleaning device, equipped with strong Negative pressure suction fan, clearing the dust, paper scrap or other waste, to improve printing quality.

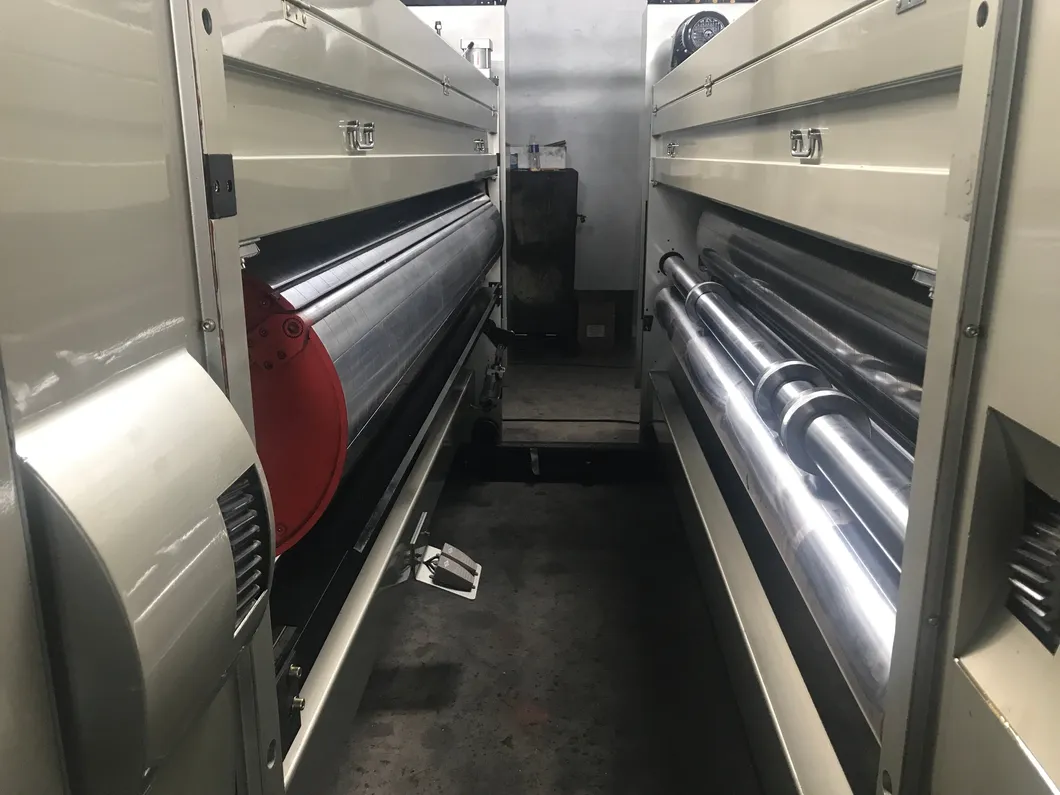

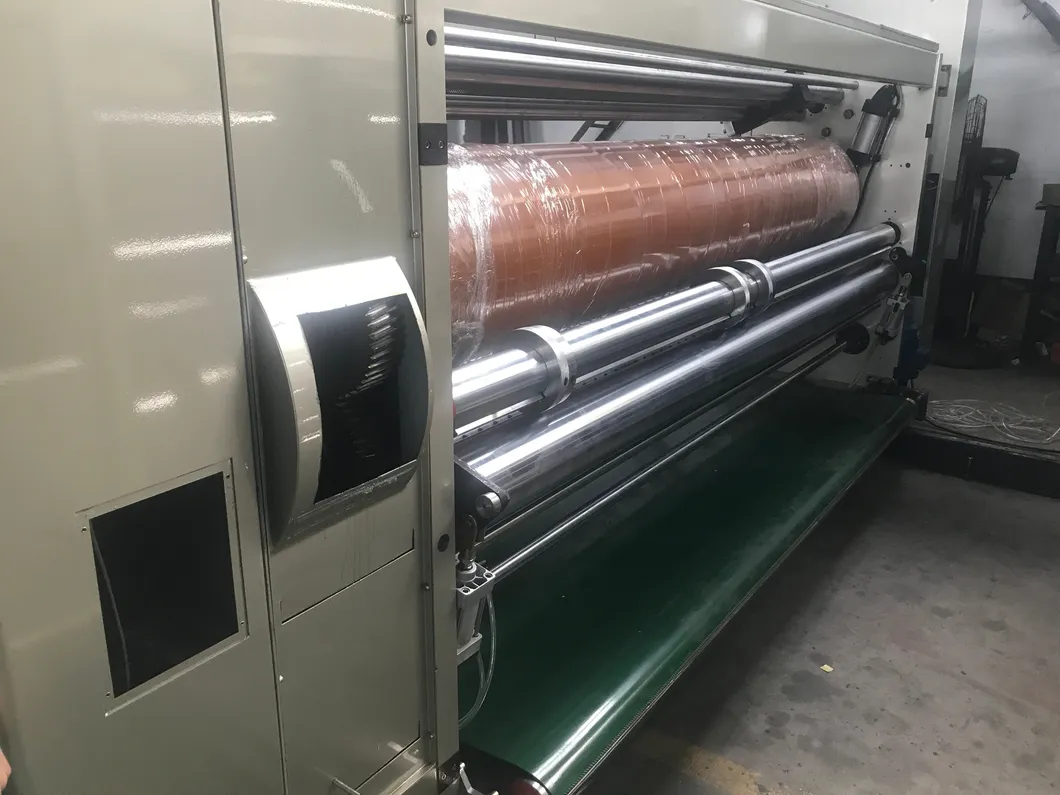

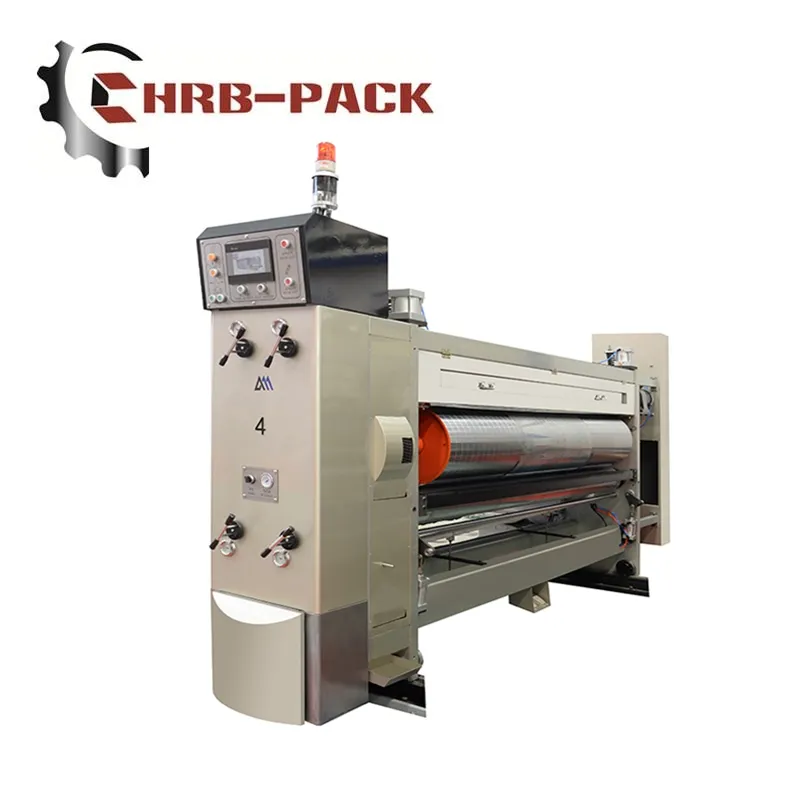

Printer machine:
- With printing plate, outer diameter φ408mm
- Fixed coil axis, suitable for standard hanging slats, realize rapid change plate
- Installed with foot switch to control plate roller reversing, convenient change plate
- Auto-zero function,order memory.
- Printing roller plate-change and fix-plate function.
Slotting machine:
- Computer auto control cardboard size by Linear guideway
- 6 shaft with pre-creasing line, creasing line, slotter line
- The first pressure line round, after preloading cardboard not easily crush
- The above press round Urethane appearance package, will not damage the cardboard
- The slotter knife stock use traverse mechanism, screw with linear guide, to move more flexible and precise
Rotary Die cutting machine:
- Rubber roller mechanical spiral commutation 40mm move about horizontal structure
- Die-cutter phase, computer and electric digital control
- Horizontal phase, computer and electric digital control, range ±5mm
Welcome to call me!
