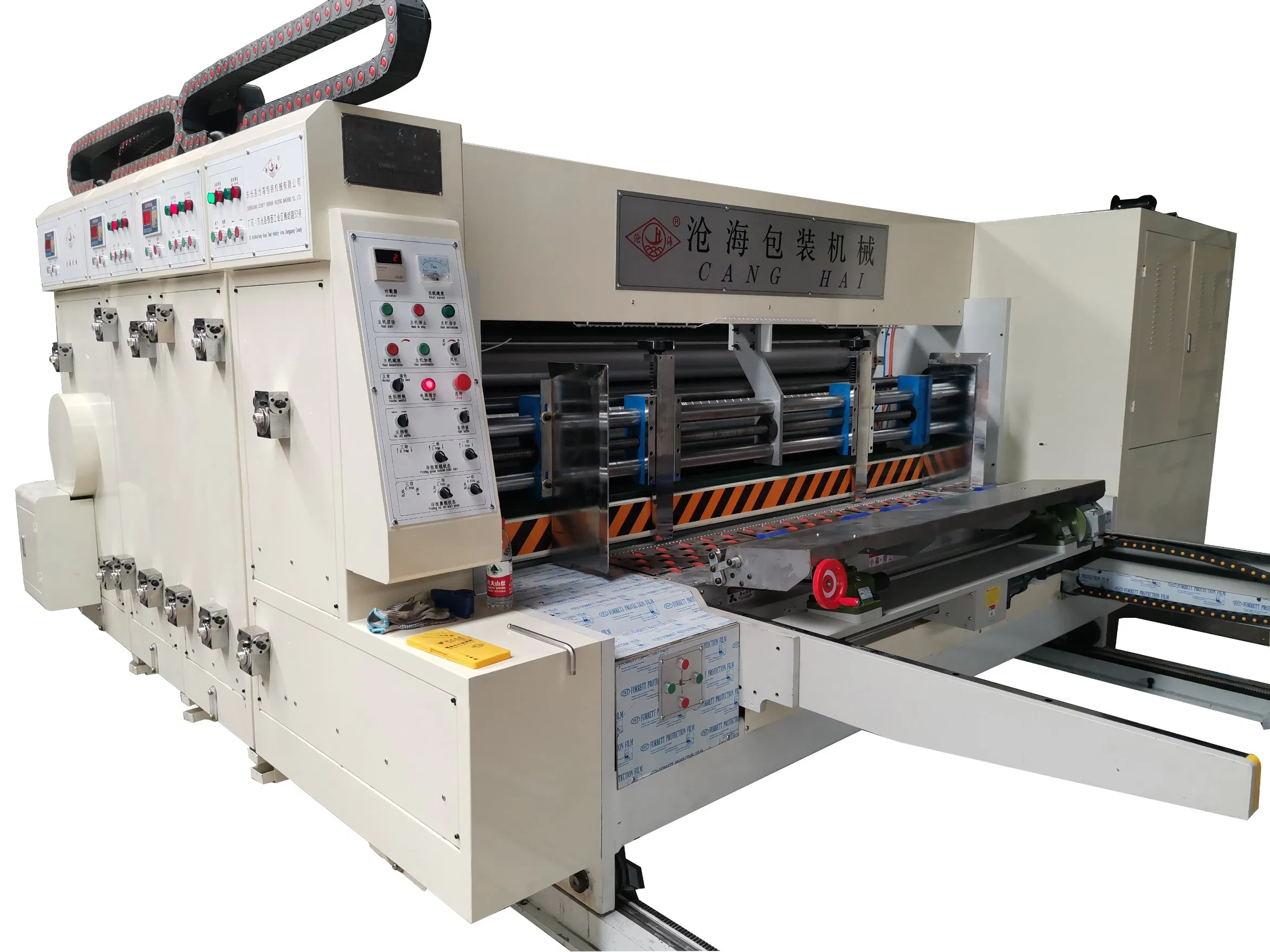

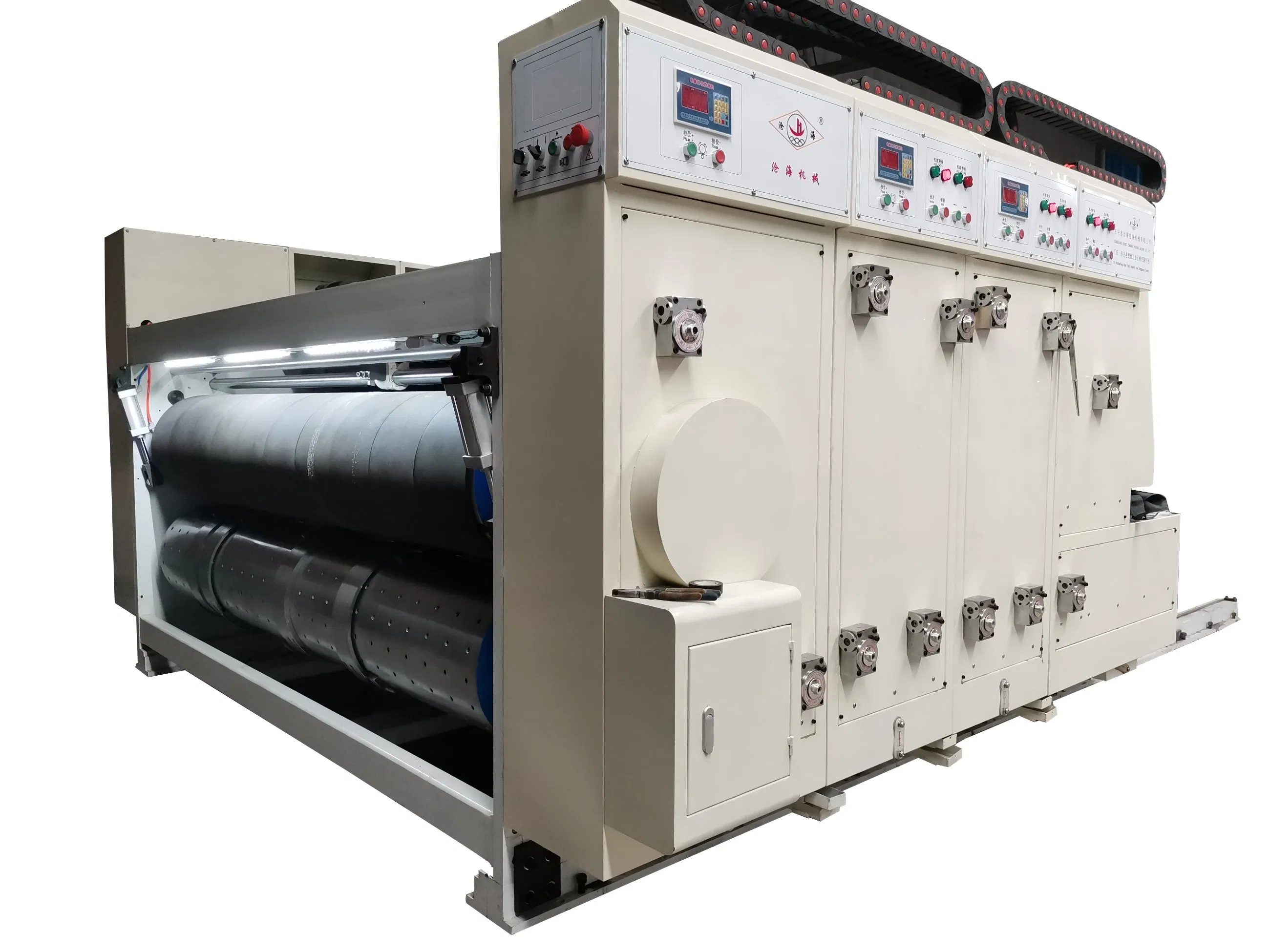

Flexo 2 Color Printer Slotter Die Cutter Machine for Corrugated Cardboard

Product Description

flexo 2 color printer slotter die cutter machine for corrugated cardboard

Function and characteristics

Adopt the good material and parts.
The transmission gear adopt 20CrMin Ti high quality alloy steel which is grinded after heat-treatmen , hardness 60 degree.
All roller plated with rigid chrome , Increase hardness.
Whole machine main structure part using capt-lock union link, eliminated the link interval,Suit to the long time printing.

Cetral-computerized unit

The whole machine is controled by Switzerland servo driven program in computer.
All the position adjustment are charged by PLC, the coder follows.
Each unit has equipped schnaider button to make adjustment accuracy which is convenient to operate.
The remote Telemaintenance serivce is available.

Feeding Unit

Taking leading edge feeding technology to ensure feeding precision, fast and it is suitable for all kinds of corrugated cardboard.
Using dual rubber roller driven by servo-motor to delivery without mechanical difference.
With air-operator adjustment function ,the top feeding cylinder coated abrasion proof rubber to keep the cardboard from distortion.
Vacuum suction lead edge feed and adjust the paper size as per pressure of wind.
Installing suck removing dust machine to eliminate the odd on the printing plate and improve the printing quality.
Adjust the feed unit space by manual.

Printing unit

Both printing cylinder and impression cylinder are made of high quality steel with grounding surface and chrome plated.
Dynamic and staic balance correction ensure to run stability.
Adopt hanging structure,convenience and faster to set up.
Installing and uninstalling printing plate with pedal switch.
Working with feeding unit and automatical lift system(during the feeding unit runs,the anvil roller goes down to contact with printing plate,while,on contact, leave printing plate)
Printing roller keep the function of zero return and can reset in dynamic and static condition.
Printing phase adopt PLC touch screen 360 degree adjust electric number.
