Flexo Printer Slotter Die Cutter Fold Gluer Inline Machine; Packaging Machine; Flexo Printing Machine
HRB Pack 1224 case maker flexo printer gluer box inline HRB-1224 CASE MAKER Wallboard thickness 50mmMax Machine Speed (pcs/min) 180Economic Working Speed (pcs/min)150Max. Feeding Size (mm) 1200×2400Min. Feeding Size (mm) 400X900Skip-feeding Size (mm) 1400×2400Standard Plate Thic......
Send Inquiry
Product Description

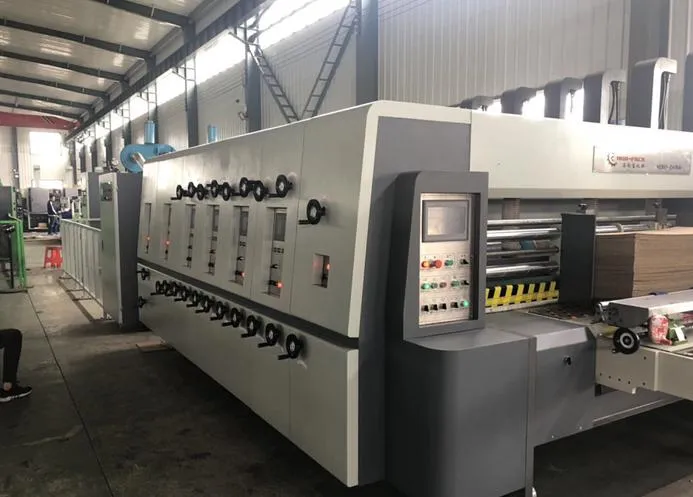

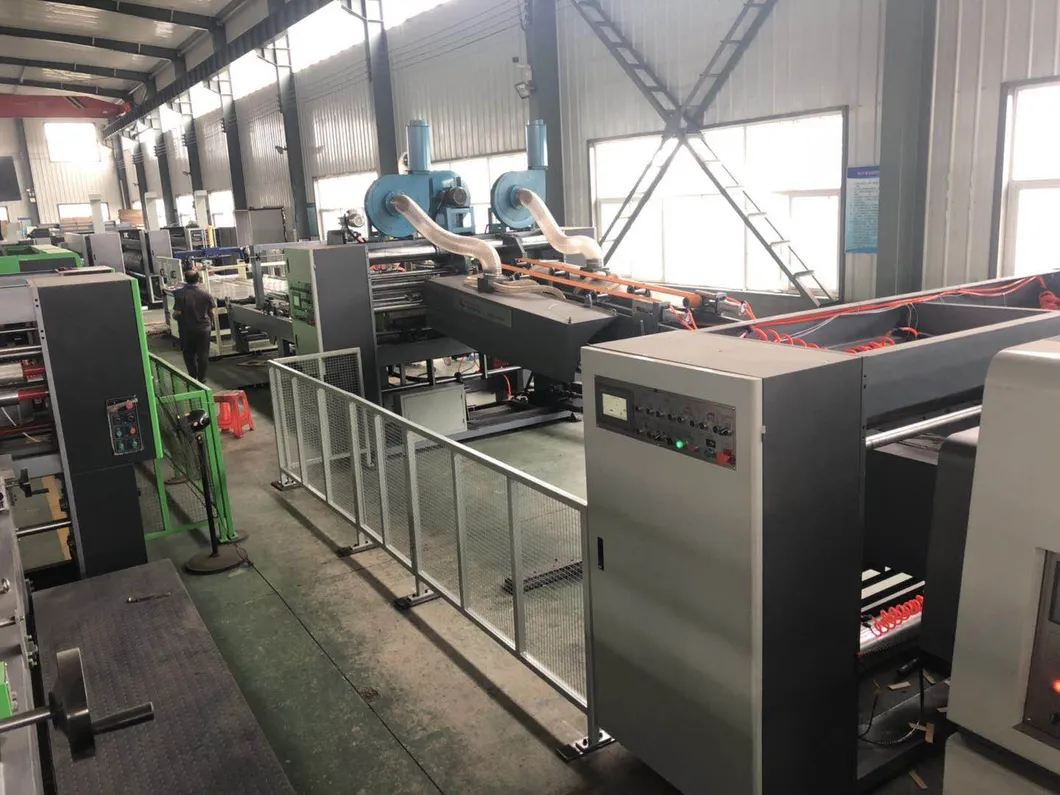

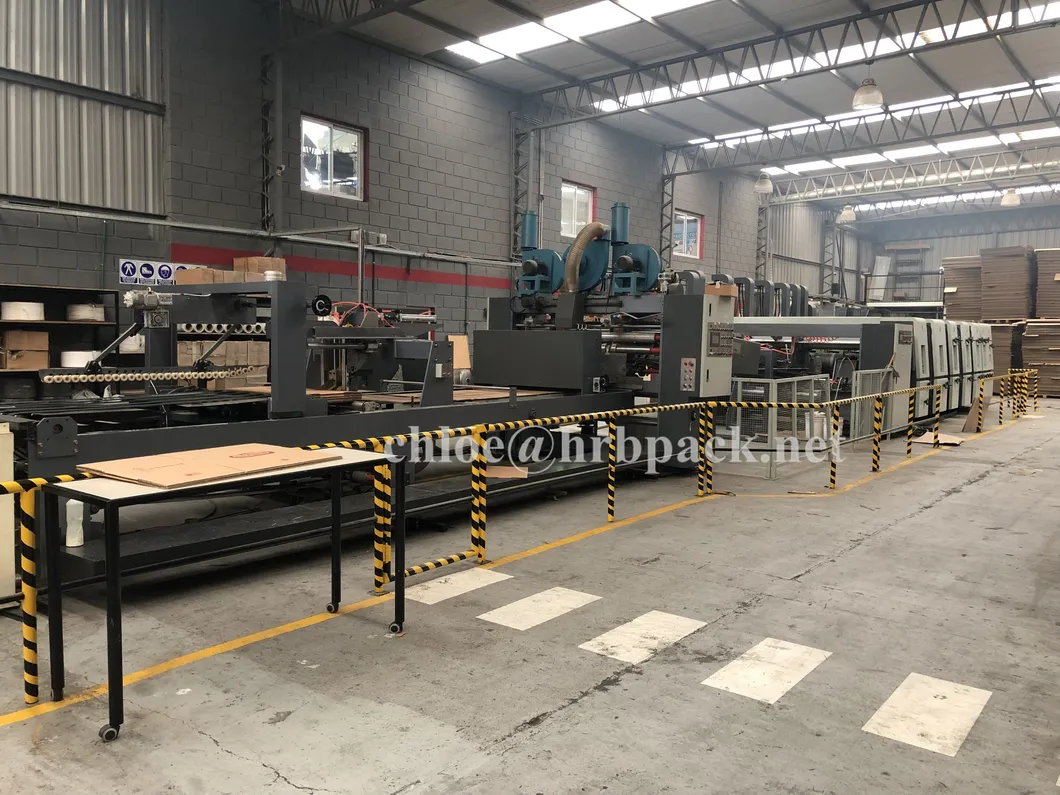

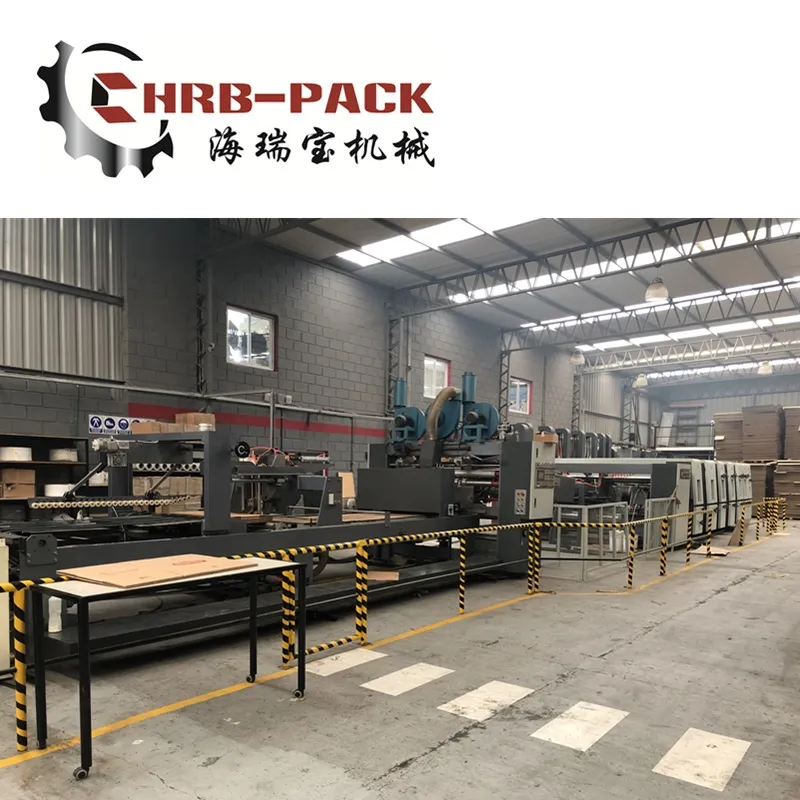

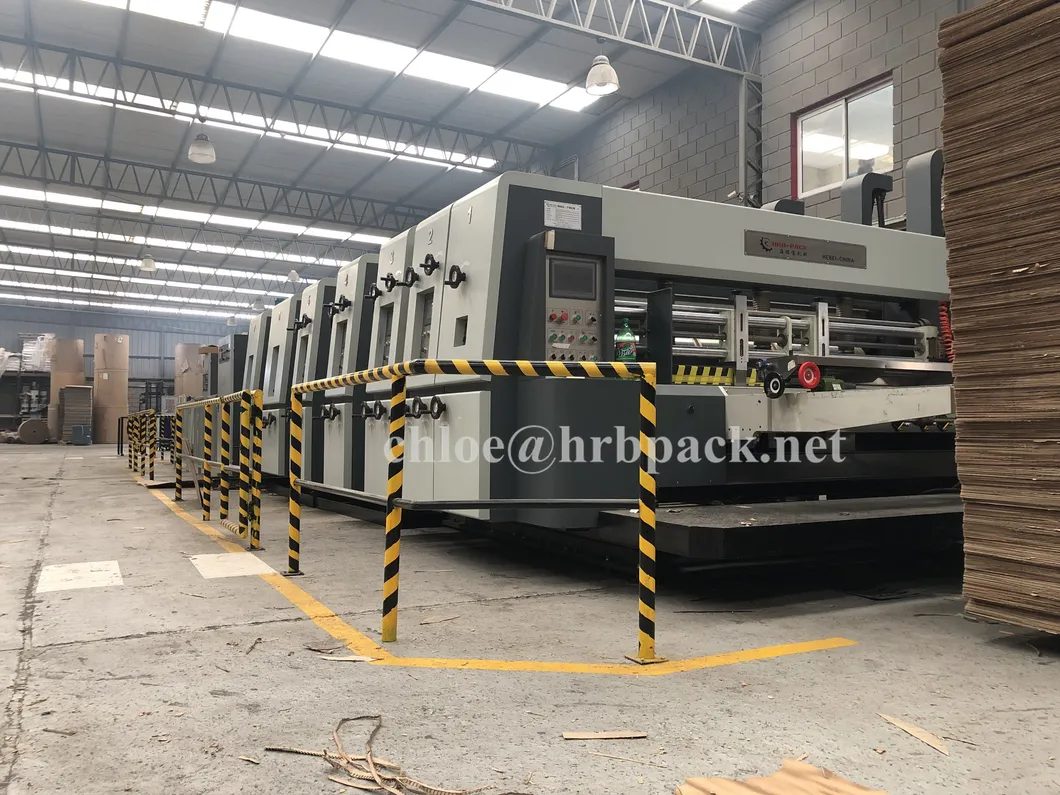

HRB Pack 1224 case maker flexo printer gluer box inline
| HRB-1224 CASE MAKER | |
| Wallboard thickness | 50mm |
| Max Machine Speed (pcs/min) | 180 |
| Economic Working Speed (pcs/min) | 150 |
| Max. Feeding Size (mm) | 1200×2400 |
| Min. Feeding Size (mm) | 400X900 |
| Skip-feeding Size (mm) | 1400×2400 |
| Standard Plate Thickness (mm) | 7.2 |
| Min. slotter distance NEGATIVE | 320X120X320X120 |
| Max slotter depth (mm) | 600 |
| Print precision (mm) | ±0.3 |
| Slot precision (mm) | ±1.0 |
| Die-cut precision (mm) | ±1.0 |
| Suitable Cardboard Thickness (mm) | 2 - 10 |
LEAD-EDGE FEEDING SYSTEM
- Lead-edge suction feeding system, easy operation, high accuracy,(adopts lead feeder system).
- 7.5KW high-pressure centrifugal fans, according to the cardboard warping degree of the frequency control pressure, to ensure warp cardboard or thin cardboard high-speed accurate transmission.
- Left and right side baffle position electrically adjustable,screw-driven.and can remember by computer.
- The front baffle adjusts the position of the upper and lower intervals synchronization by manual.

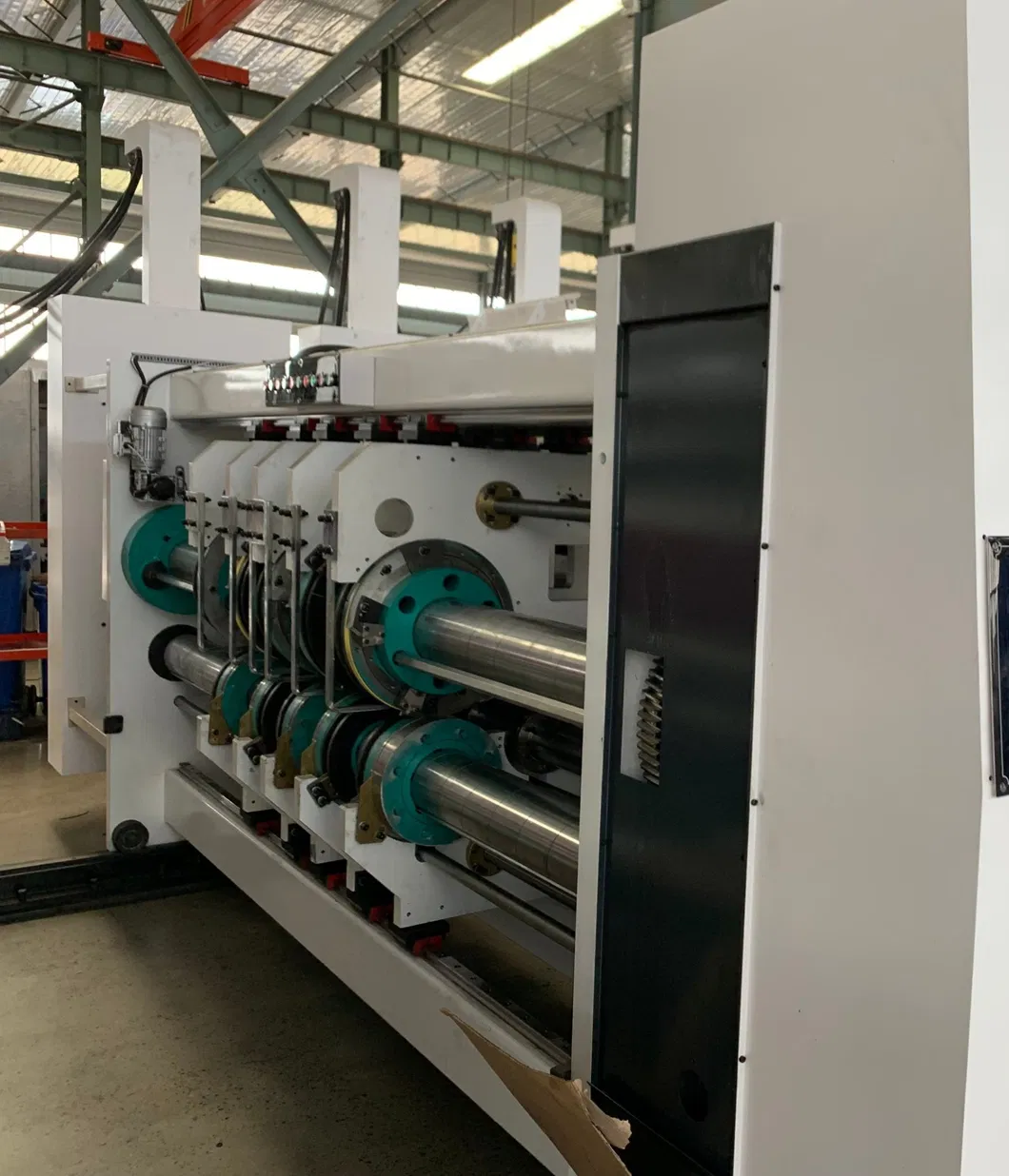

PRINTER UNIT
ANILOX ROLLER
- Outer diameter φ 212mm
- Steel anilox roller, brand HAILI
- Steel anilox roller mesh:180-300 line
- Outer diameter φ 200mm
- Rubber roller adopts Guangdong Jingyang.
- Overrunning clutch and automatic idling device, to prevent the ink dried
- Rubber roller drum-type middle part higher, to ensure ink quality
- Rapid spaced spinner self-locking device ensures uniform ink
- Ink distributing roller independent drive mechanism, ensure ink quality
SLOTTING UNIT
- Single-axle double-knife slotter, use Internal tooth structure adjustment the height of the box So that oil does not easily contaminate cartons
- Computer auto-control cardboard size by Linear guideway
- 6 shaft with rubber pre-creasing line, creasing line, slotter line
- The first pressure line round, after preloading cardboard not easily crush

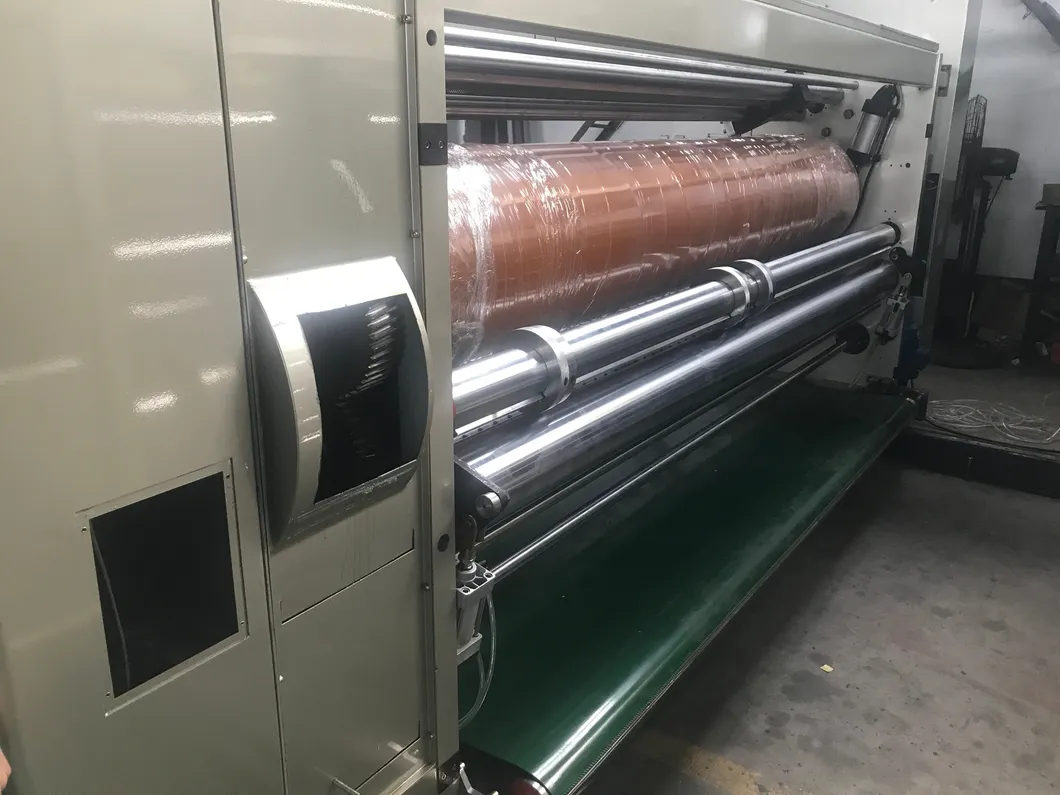

Die-cutting unit:
- Rubber roller mechanical spiral commutation 40mm move about the horizontal structure
- Die-cutter phase, computer, and electric digital control
- Horizontal phase, computer, and the electric digital control, range ±5mm
- Rubber roller and die roller gap use a computer and electric digital control
Fold gluer box unit:
- Mechanical speed: 200m/min.
- Main Motor Power: 18.5kw
- Running Motor Power: 42kw (depend on running )
- Control way: PLC program control.
PP STRAPPING Unit
- Voltage 380V 50HZ 3KW/5A
- Speed 15 box/min
- Tension: 0-85kg
- PP strap: width 5mm, thickness 0.45-0.8mm
Welcome to call me!
chloe
HRB pack group co.,ltd
