Product Description

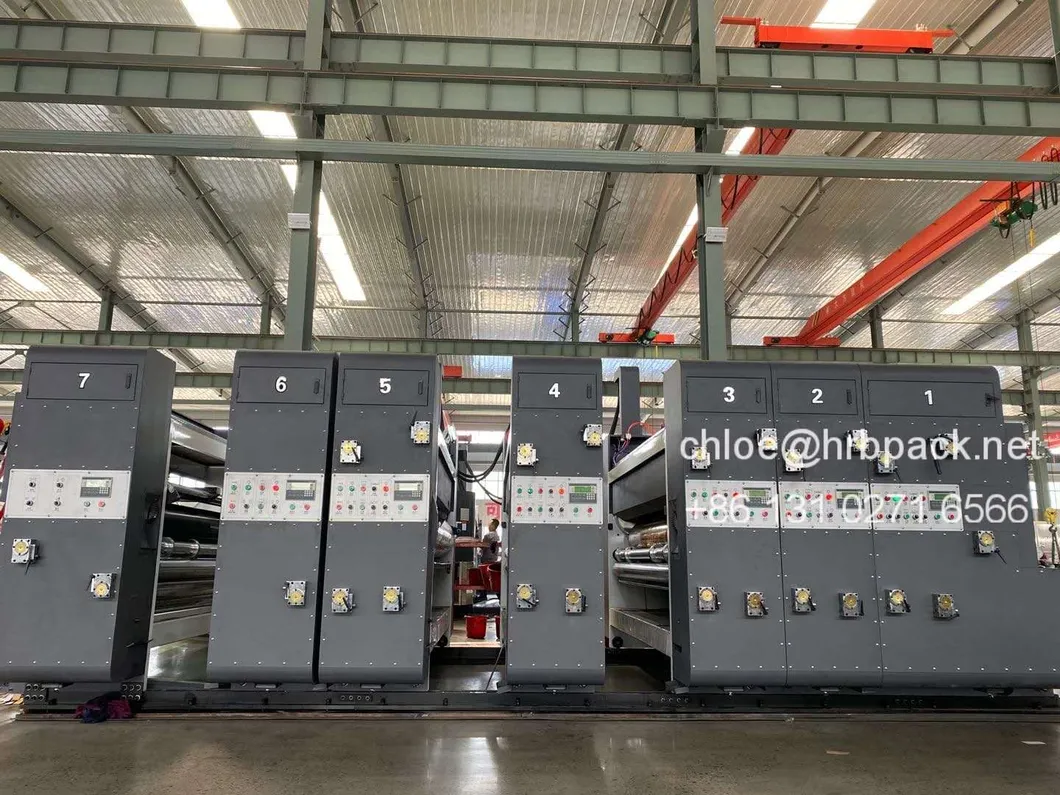

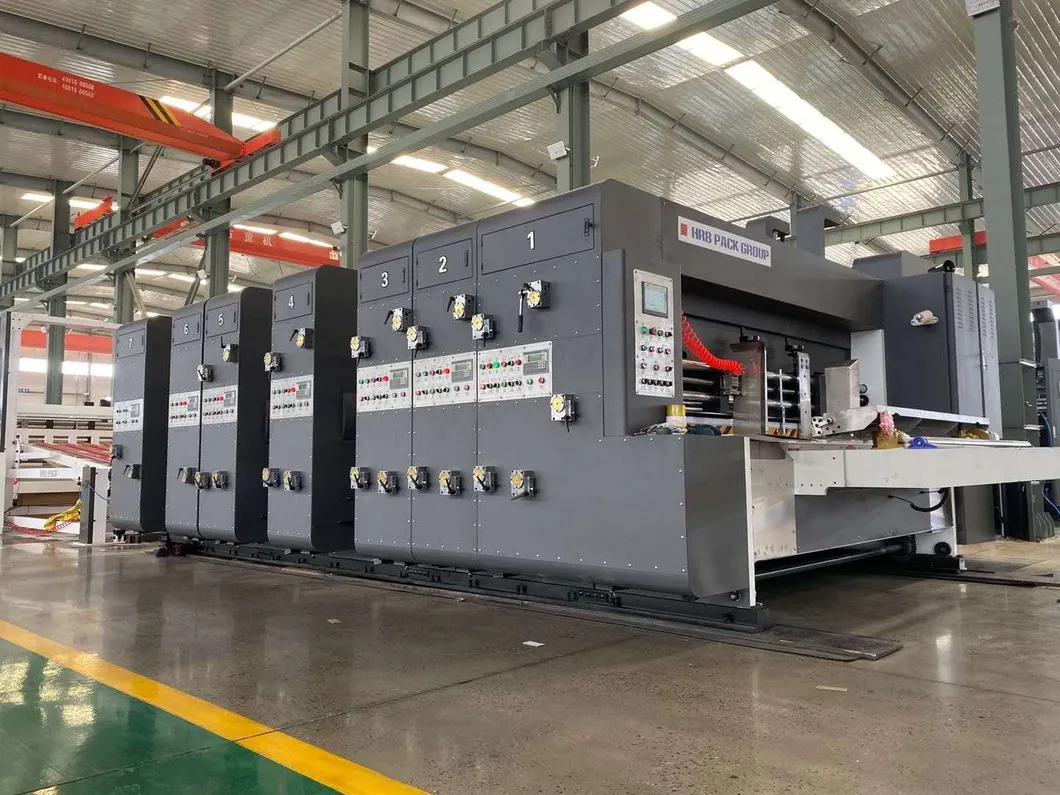

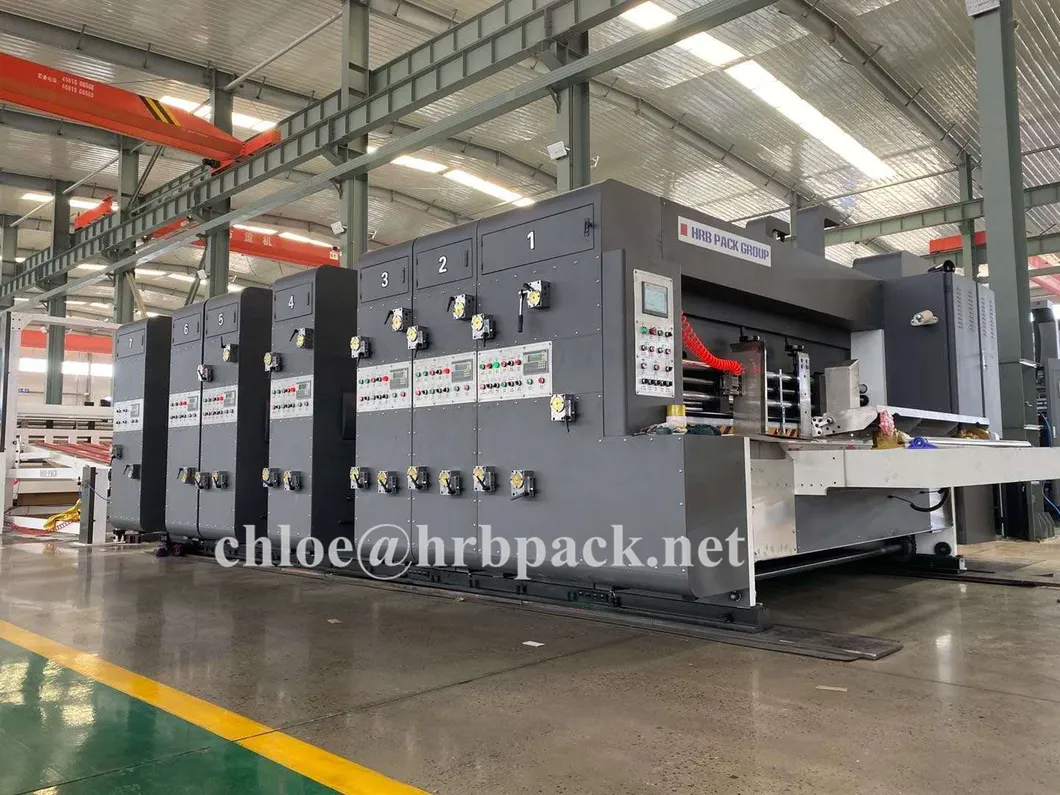

HRB Economic Flexo Printer Slotter Die cutter Machine

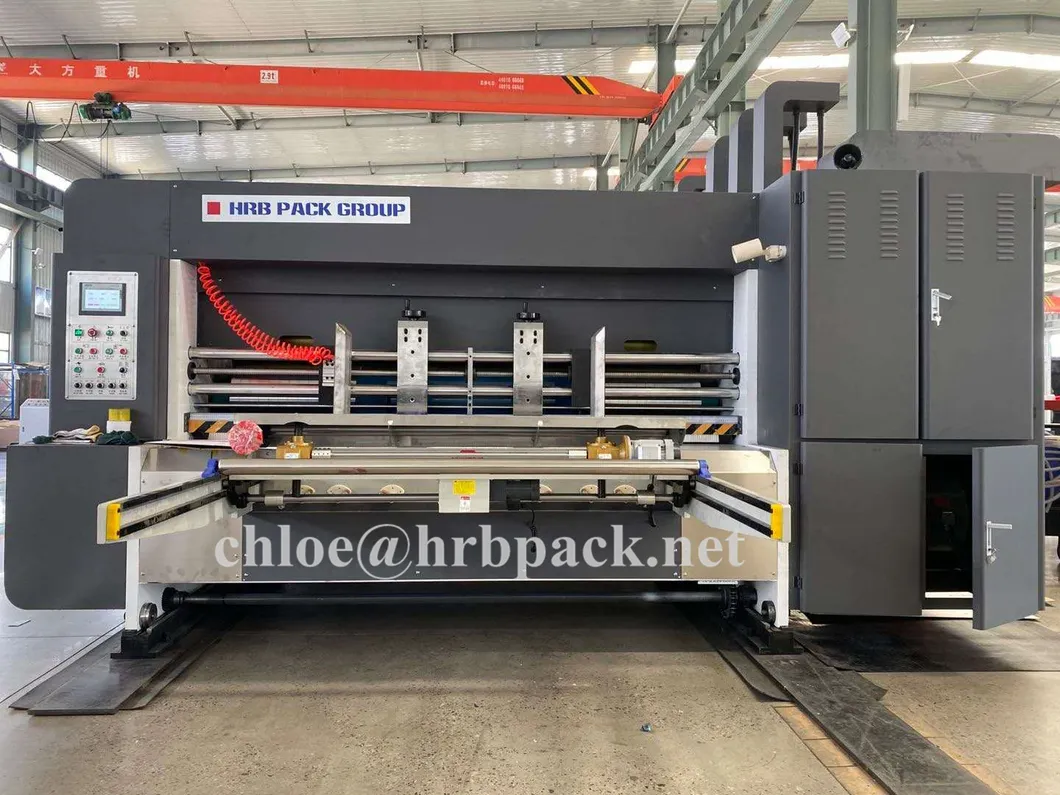

HRB-1424 LEAD EDGE FEEDER PRINTER SLOTTER DIE CUTTER MACHINE

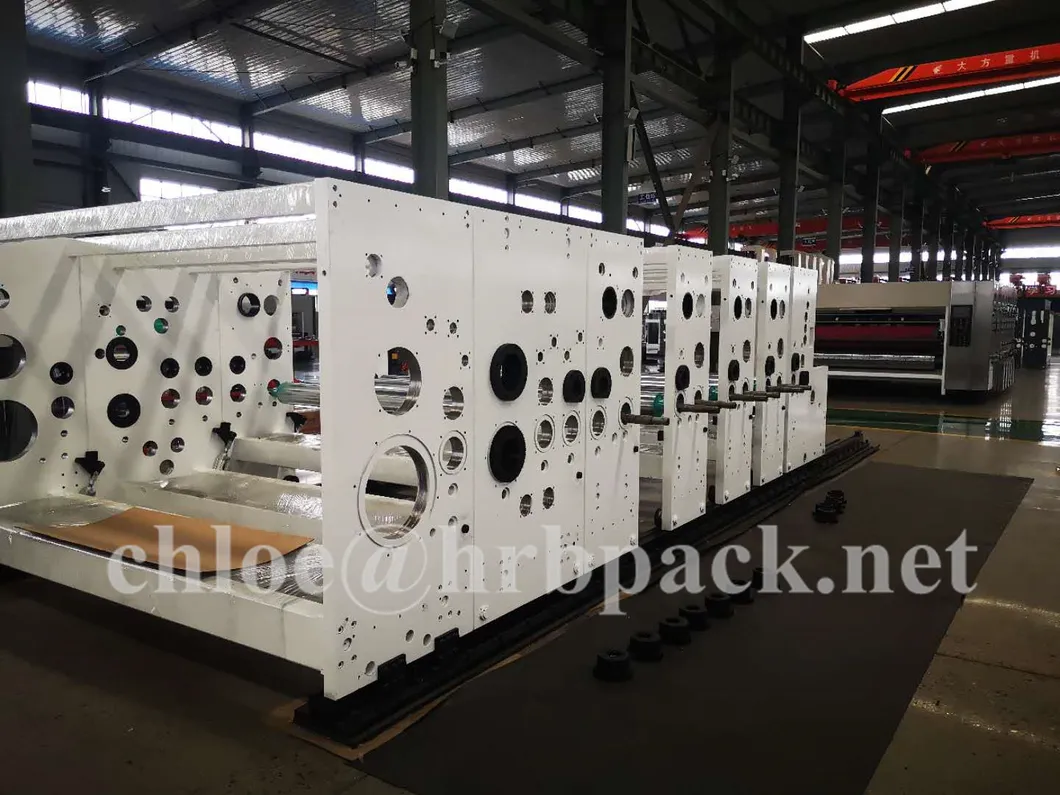

Wall board thickness	50mm
Max Machine Speed (pcs/min)	120
Max. Feeding Size (mm)	1400×2400
Min. Feeding Size (mm)	450x660
Standard Plate Thickness (mm)	7.2
Min. slotter distance NEGATIVE	250X85X250X85
Max slotter depth (mm)	300
Print precision (mm)	±0.3
Slot precision (mm)	±1.0
Die cut precision (mm)	±1.0
Suitable Cardboard Thickness (mm)	2 - 11

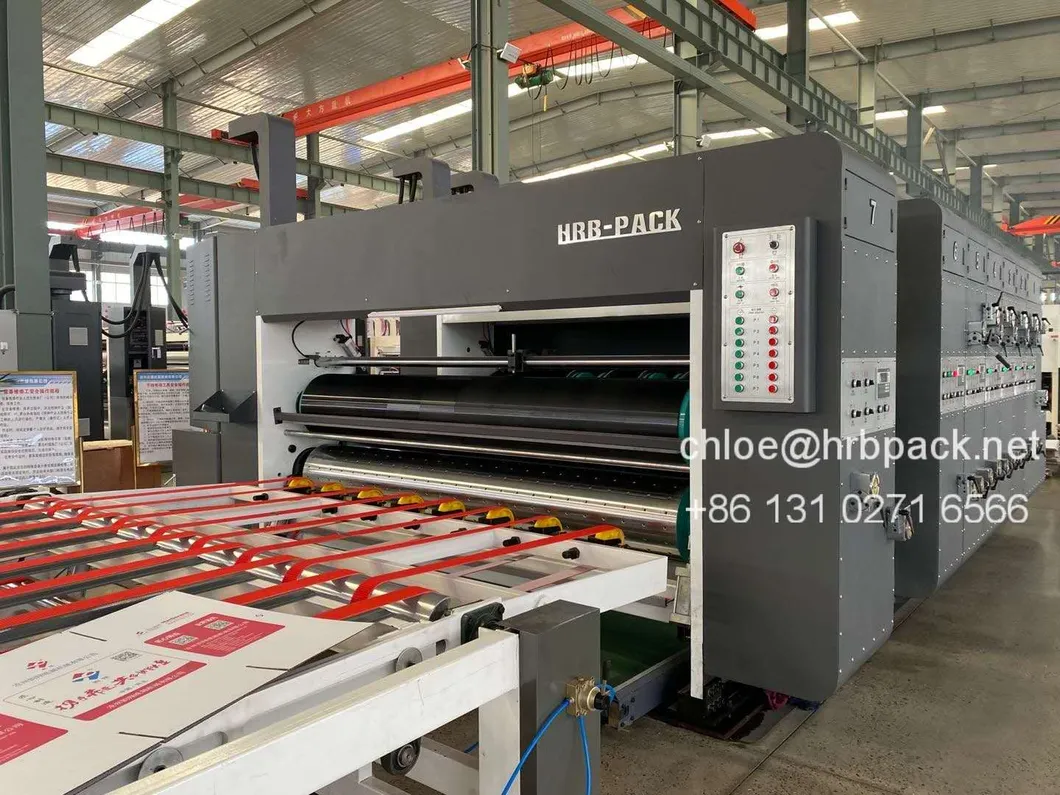

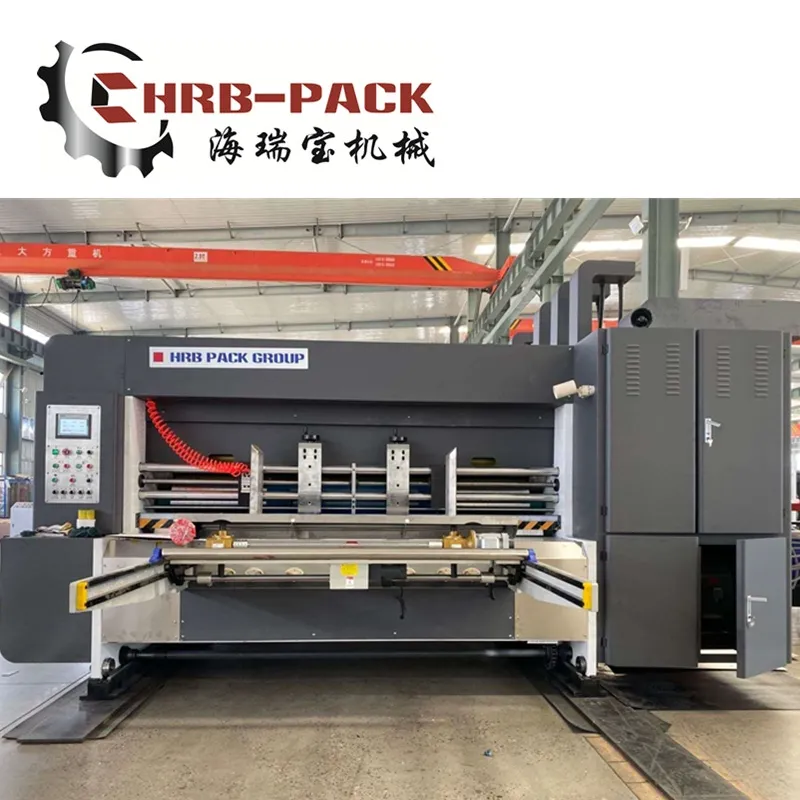

Lead edge Feeding unit

Flexo Printer Slotter Die Cutter Carton Box Machine; Flexo Printing Box Machine; Printing Slotting Die-Cutting

Automatic suction lead edge feeder equipped with a 7.5kw suction fan to feeding cardboard, the blowing rate is adjustable by the transducer according to the degree of crook of cardboard in order to transmit cardboard smoothly.
The main control pannel is composed of control buttons and touch screen, which is very convenient and reliable.
The machine is launched by pressing the start button with two hands, which ensure the operator's safety.
The side plate is electrical adjusted automatically while the backstop is adjusted manually.
Sheet cleaner is equipped to remove the contaminants on the cardboard which will improves the printing quality.
The upper transmission roll is made of seamless steel tube, the surface is covered wearproof rubber, which is also good at avoiding crushing the cardboard.
The lower transmission roll is made of seamless steel tube, with the treatment of grinding, embossing, and chrome plated.
The transmission between the upper and lower transmission roll is driven by double slider coupling, which is good at reducing wear down and transmitting smoothly.
The transmission shaft equipped with electromagnetic friction clutch, for avoiding damaging the motor in case of misoperation or overload.
Automatic counter for recording the cardboard supply quantity to show the output.

Printer unit

Gear enclosed spray lubrication system, keyless drive design, so that accurate long-term chromatic unchanged. High-speed Ink Printing Slotting Machine Manufacture
Frequency control system to control becomes easy and flexible. Each group of printing unit is equipped with jogging button for easy control and loaded rubber plate.
Each printing unit can be electrical separation. Printing Slotting Machine
High-precision anilox roller, diameter 195mm. The textured density of anilox roller is 180-300 lines / inch, to ensure the printing effect is clear and beautiful.
Ink supply system is pneumatic diaphragm pumps, high efficiency, Flexo Printing Slotting Machine saving ink. Automatic cycle supply. Cleaning with clean water can be.
Automatic uniform system to keep the anilox roller quit. When the machine stop,the anilox roller and rubber roller could running independently for transmission ink and prevent the ink dry out.
The rubber roller is use high quality hard wearing rubber,and with the middle of a relatively high high-precision grinding. Semi Automatic Carton Flexo Printing Slotting Machine
Phase institutions is 360-degree Electric adjustment, ergonomic design.

Slotting unit:

Flexo Printer Slotter Die Cutter Carton Box Machine; Flexo Printing Box Machine; Printing Slotting Die-Cutting

Gear enclosed spray lubrication system, keyless drive design, so that accurate long-term chromatic unchanged. High Speed Flexo Printing Slotting(stacking Unit)
Phase institutions is 360-degree Electric adjustment, ergonomic design.
Four-blade sync adjustment for carton height.
Serrated slotted cutter. Thickness: 7mm.
Slotter and creaser combined movement

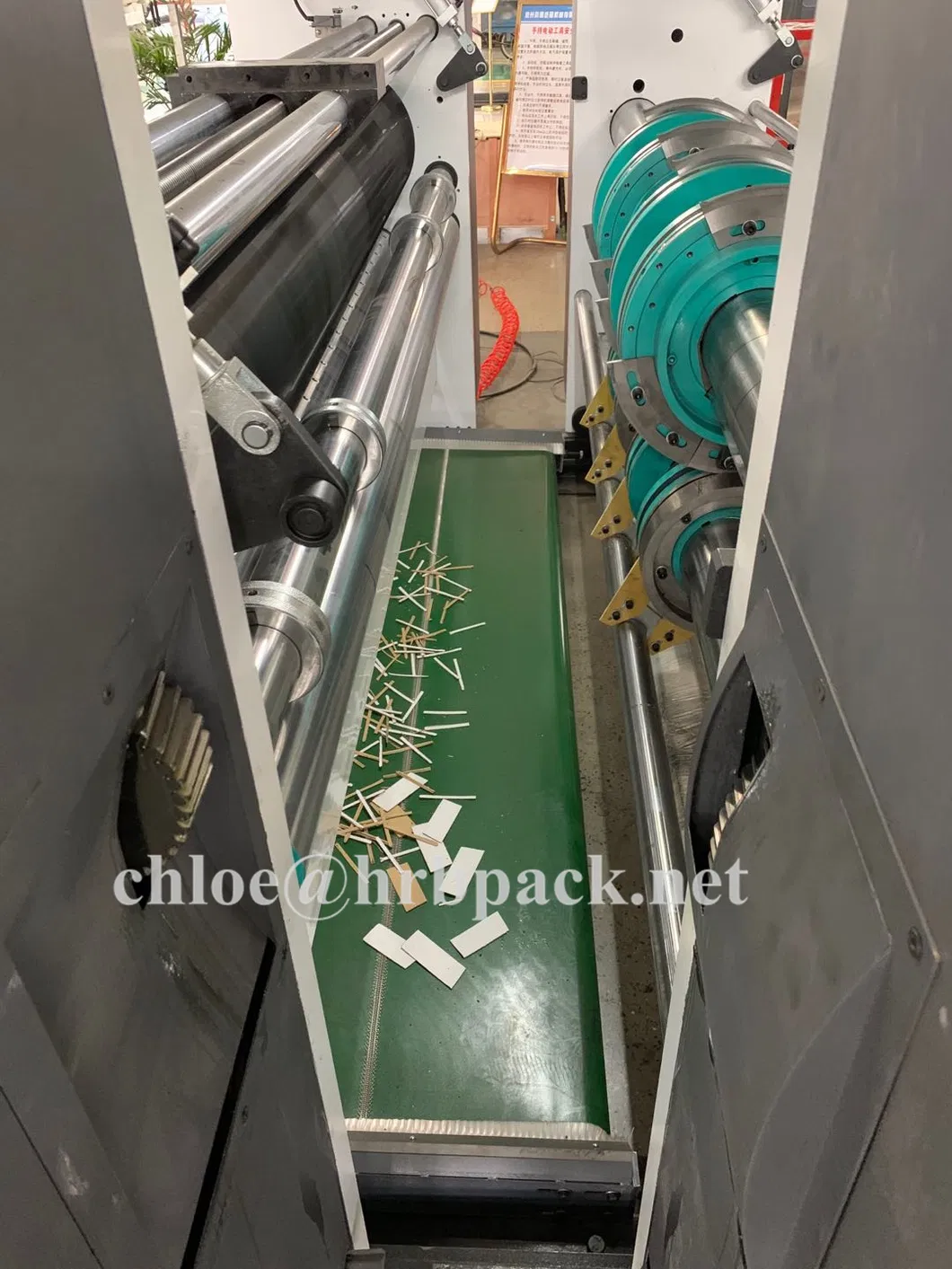

Rotary die cutting unit:

Rubber roller mechanical spiral commutation 40mm move about horizontal structure
Die-cutter phase, computer and electric digital control
Horizontal phase, computer and electric digital control, range ±5mm
Rubber roller and die roller gap use computer and electric digital control,
Adjust the transfer roller use computer and electric digital control,
The rubber roller compensated by motor-driven,control the speed of thr rubber roller, range ±3mm
